Mustard Oil Manufacturing Process
Raw Material Preparation
Seed Cleaning: Mustard seeds are cleaned to remove impurities such as stones, dust, and other foreign materials.
Seed Conditioning: Seeds may be conditioned by adjusting moisture content to improve oil extraction efficiency.
Oil Extraction
Cold Pressing: Seeds are pressed at low temperatures to extract oil while retaining natural flavors and nutrients.
Hot Pressing: Seeds are heated and then pressed at higher temperatures to achieve higher oil yield.
Solvent Extraction (Optional): Involves using a solvent (usually hexane) to extract oil from seeds, followed by solvent removal.
Oil Refining (if needed)
Degumming: Removes gums and phospholipids from the oil.
Neutralization: Neutralizes free fatty acids.
Bleaching: Removes color pigments and impurities.
Deodorization: Removes unwanted odors.
Oil Filtration
Filtering: The extracted oil is filtered to remove any remaining solid particles.
Packaging
Filling and Sealing: The filtered oil is packaged into bottles or containers for distribution.
Components of a Mustard Oil Manufacturing Plant
Seed Cleaner
Purpose: Removes impurities from mustard seeds.
Equipment: Seed cleaning machine.
Cooking Kettle
Purpose: Heats seeds for better oil extraction (used in hot pressing).
Equipment: Cooking kettle with heating arrangement.

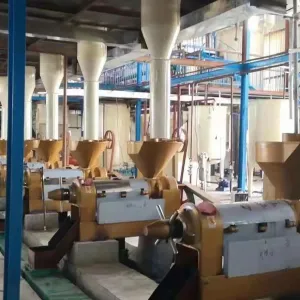

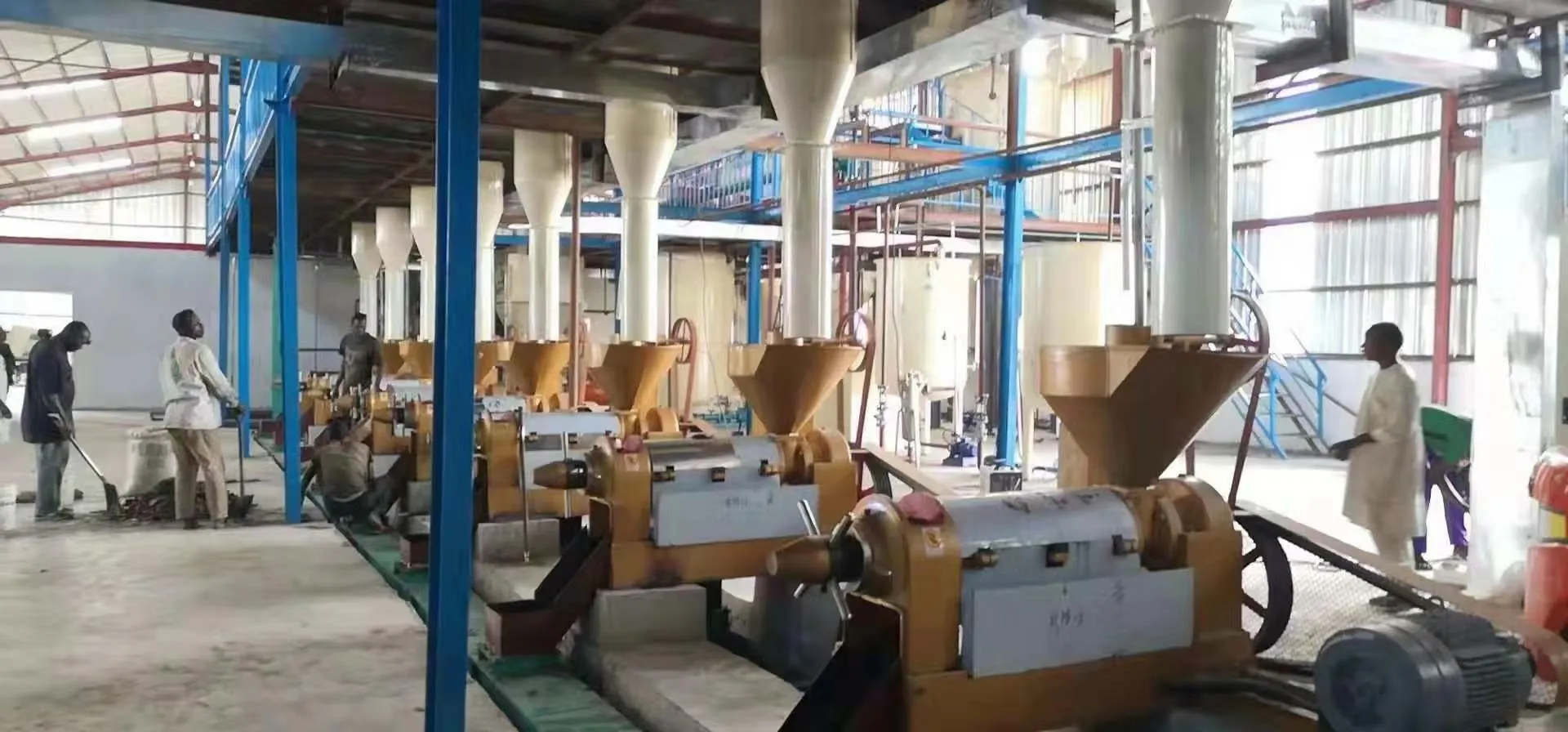

Oil Expeller/Press
Purpose: Extracts oil from seeds through mechanical pressing.
Equipment: Mustard oil expeller or screw press.
Filter Press
Purpose: Filters the extracted oil to remove solid particles.
Equipment: Plate filter press or pressure leaf filter.
Storage Tanks
Purpose: Stores the extracted and filtered oil.
Equipment: Oil storage tanks.
Packaging Unit
Purpose: Packages the oil into bottles or containers.
Equipment: Filling and packaging machines.
Considerations for Setting Up a Mustard Oil Manufacturing Plant
Capacity
Determine the daily production capacity based on market demand and investment capacity.
Location
Choose a location with access to raw materials, utilities (water, electricity), and transportation facilities.
Machinery
Select machinery based on the chosen extraction method (cold pressing, hot pressing, or solvent extraction).
Raw Material Supply
Ensure a reliable supply of high-quality mustard seeds.
Quality Control
Implement quality control measures to ensure the oil meets food safety and quality standards.
Licensing and Permits
Obtain necessary licenses and permits for operating a food processing plant.
Budget and Financial Planning
Prepare a detailed budget covering machinery, installation, utilities, labor, and raw materials.
Environmental Compliance
Ensure compliance with environmental regulations and waste management practices.
Estimated Costs
Small-Scale Mustard Oil Manufacturing Plant (1-5 tons/day)
Total Estimated Cost: $20,000 - $58,000
Medium-Scale Mustard Oil Manufacturing Plant (5-20 tons/day)
Total Estimated Cost: $70,000 - $205,000
Large-Scale Mustard Oil Manufacturing Plant (20+ tons/day)
Total Estimated Cost: $230,000 - $680,000
