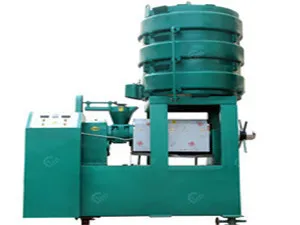

An expeller press, also known as an oil press or screw press, is a mechanical method used to extract oil from seeds and nuts. This method involves pressing the seeds or nuts with a mechanical screw, which generates pressure and heat to extract the oil. The expeller press is commonly used in small to medium-scale oil extraction operations.
Components of an Expeller Press
Feeding Hopper: Where the raw material (seeds or nuts) is loaded.
Pressing Chamber: Contains the screw and barrel, where the actual pressing occurs.
Screw Shaft: A helical screw that rotates to crush and press the seeds or nuts.
Press Cage/Barrel: Encases the screw shaft and has small perforations for the oil to escape.
Press Head: The outlet where the pressed cake (residual solid material) is expelled.
Oil Outlet: Where the extracted oil flows out of the press.
Motor: Powers the screw shaft, usually electrically driven.
Reduction Gearbox: Reduces the motor speed and increases torque for pressing.
Heater: Some expeller presses have a built-in heater to preheat the seeds or nuts, which helps in better oil extraction.
How an Expeller Press Works
Loading: Raw seeds or nuts are loaded into the feeding hopper.
Crushing and Pressing: The seeds or nuts are fed into the pressing chamber, where the rotating screw crushes and compresses them.
Oil Extraction: The pressure and friction generated by the screw cause the oil to be expelled through the perforations in the press cage.
Oil Collection: The extracted oil flows out of the oil outlet and is collected.
Expelled Cake: The residual solid material, known as pressed cake, is expelled from the press head.
Types of Expeller Presses
Cold Press: Extracts oil at lower temperatures (below 120°F/49°C) to preserve the nutritional value and flavor of the oil. Suitable for seeds like flaxseed, walnut, and chia.
Hot Press: Uses heat to increase oil yield and extraction efficiency. Suitable for seeds like soybeans, peanuts, and sesame.
Advantages of Expeller Pressing
Mechanical Process: No chemicals are used, resulting in a more natural oil.
Versatility: Can process a wide variety of seeds and nuts.
High-Quality Oil: Produces high-quality oil with good flavor and nutritional properties.
Cost-Effective: Especially suitable for small to medium-scale operations.
Considerations for Choosing an Expeller Press
Capacity: Choose based on the volume of seeds/nuts to be processed.
Type of Seeds/Nuts: Different seeds and nuts have different oil content and may require specific types of presses.
Power Source: Ensure the press is compatible with the available power source (electric, diesel, etc.).
Maintenance: Consider the ease of cleaning and maintenance.
Cost: Evaluate the initial investment and operational costs.
An expeller press is a crucial piece of equipment for oil extraction from seeds and nuts, offering a natural and efficient method for producing high-quality oil. When choosing an expeller press, consider factors such as capacity, type of seeds/nuts, power source, and maintenance requirements to ensure you select the right equipment for your needs.
